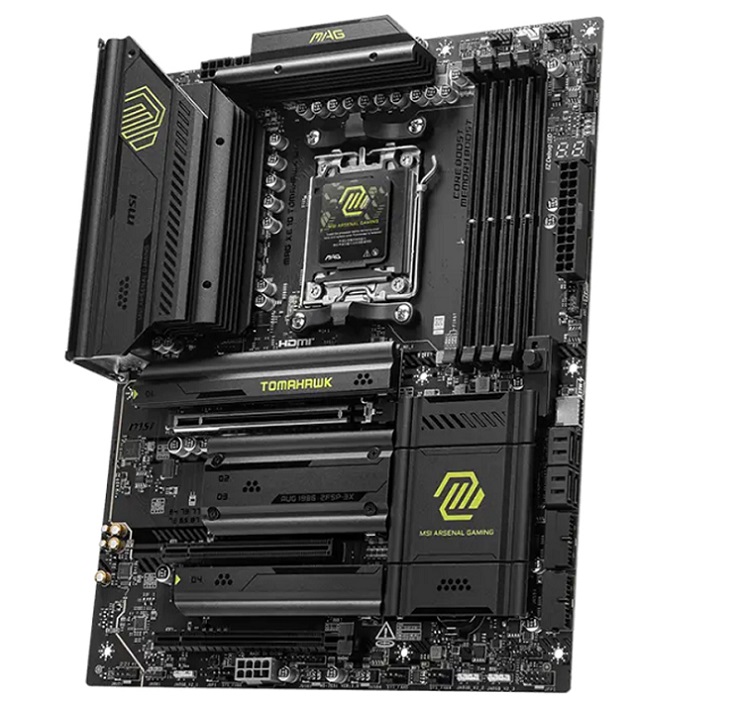

Mainboard MSI MAG X870 TOMAHAWK WIFI (AMD X870/ Socket AM5/ ATX/ 4 khe ram/ DDR5/ 5 Gigabit LAN) | | ||||
Mã sản phẩm : MSI MAG X870 TOMAHAWK WIFI | ||||
Hãng sản xuất : MSI | ||||
Bảo hành : 36   Tháng | ||||
Trong kho : Còn hàng | ||||
Khuyến mại : | ||||
Giá bán:
9.490.000 VNĐ
-10%
(Tiết kiệm: 1.000.000 VNĐ)
(Giá sản phẩm đã bao gồm VAT)
|
||||
|
Miêu tả sản phẩm
Chipset: AMD X870
Socket: Socket AM5
Kích thước Main: ATX
Hỗ trợ CPU: AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Khe cắm RAM: 4 khe ram
Loại RAM: DDR5
Kết nối mạng Realtek® 8126-CG 5G LAN
Bộ nhớ RAM
Loại RAM DDR5

Kết nối
Bus RAM hỗ trợ 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support DDR5 8400+(OC)/ 8200+(OC)/ 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MT/s
Ryzen™ 9000 Series Processors max. Overclocking frequency:
• 1DPC 1R Max speed up to 8400+ MT/s
• 1DPC 2R Max speed up to 6400+ MT/s
• 2DPC 1R Max speed up to 6400+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s
Thông số (Lan/Wireless) Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4, MLO, 4KQAM
Khe cắm trong 3x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
4x SATA 6G
M2_1 slot
• Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
• Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)
Khe cắm mở rộng 3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E1 slot
• Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
• Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
• Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Cổng giao tiếp ngoài Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
HDMI™
USB 40Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A
Thông tin chung
Chipset AMD X870
Socket Socket AM5
Kích thước Main ATX
Hỗ trợ CPU AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Khe cắm RAM 4 khe ram
Card đồ họa 1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
2x Type-C DisplayPort
USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz
Âm thanh Realtek® ALC897
7.1-Channel High Definition Audio
Mô tả khác Đang cập nhật
Phụ kiện kèm theo Sách, đĩa, cáp SATA, ...
