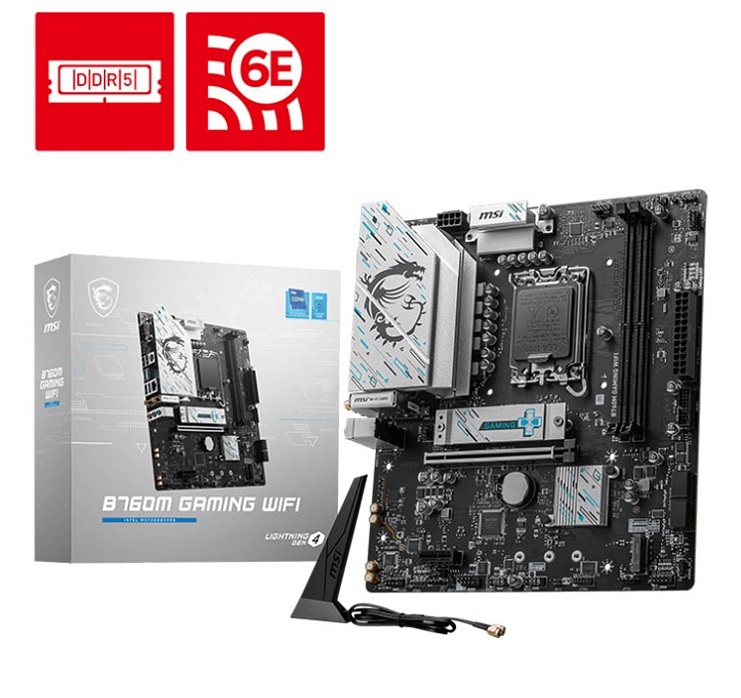

Mainboard MSI B760M GAMING WIFI (Intel B760/ Socket 1700/ M-ATX/ 2 khe ram/ DDR5/ 2.5 Gigabit LAN) | | ||||
Mã sản phẩm : MSI B760M GAMING WIFI | ||||
Hãng sản xuất : MSI | ||||
Bảo hành : 36   Tháng | ||||
Trong kho : Còn hàng | ||||
Khuyến mại : | ||||
Giá bán:
3.150.000 VNĐ
-15%
(Tiết kiệm: 540.000 VNĐ)
(Giá sản phẩm đã bao gồm VAT)
|
||||
|
Miêu tả sản phẩm
Chipset: Intel B760
Socket: Intel LGA 1700
Kích thước Main: M-ATX
Hỗ trợ CPU: Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Khe cắm RAM: 2 khe ram
Loại RAM: DDR5
Chi tiết Vga 1x HDMI™
Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Bộ nhớ RAM
Loại RAM DDR5

Kết nối
Bus RAM hỗ trợ 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. Overclocking frequency:
• 1DPC 1R Max speed up to 8000+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Kết nối mạng 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Thông số (Lan/Wireless) Intel® Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3, FIPS, FISMA
Khe cắm trong 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Khe cắm mở rộng 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Cổng giao tiếp ngoài VGA
Keyboard / Mouse
2.5G LAN
Wi-Fi / Bluetooth
Audio Connectors
HDMI™
DisplayPort
USB 2.0
USB 3.2 Gen 1 5Gbps (Type-A)
Thông tin chung
Chipset Intel B760
Socket Intel LGA 1700
Kích thước Main M-ATX
Hỗ trợ CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Khe cắm RAM 2 khe ram
Âm thanh Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
